TPC C Frame Hydraulic Press Machine 63Ton Automobile Hydraulic Press

Name: TPC C Frame Hydraulic Press Machine 63Ton Automobile Hydraulic Press
Brand: MEILI
Price: 1 USD

China TPC C Frame Hydraulic Press Machine 63Ton Automobile Hydraulic Press wholesale

Brand Name : MEILI

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 80 Sets per Month

Delivery Time : In 60days

Packaging Details : Iron Pallet

Product name : 63T C Frame Hydraulic Press Machine for automobile parts

Type : Gap press

Max opening height : 800mm

Core components : Moto Pump

Max stroke of slider : 500mm

Application : Blanking Punching Deep Draw Work Forming Straightening Assembly

System : CNC

Weight : 1-6T

Contact Now

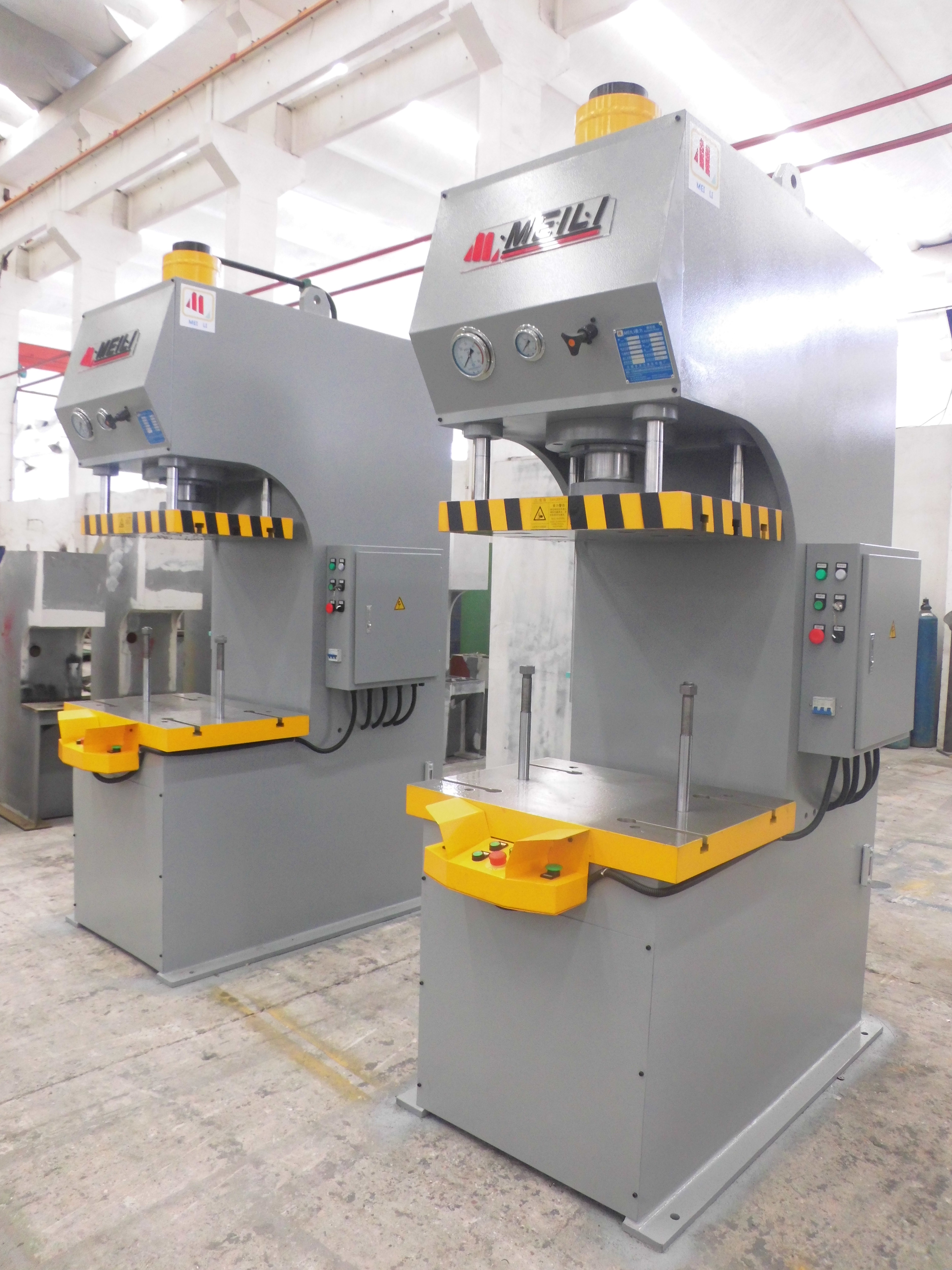

63T C Frame Hydraulic Press Machine for automobile parts.

Our hydraulic presses can be used in practically every branch of industry in any technological process in which there are operations such as pressing, punching, stamping, drawing, pressing in, sizing, forming, bending, etc.

We specialize in designing and manufacturing hydraulic presses made on the basis of individual needs and requirements of our customers with the possibility to choose the main features, as well as functionality and functional parameters.

Description		Unit	4T	6.3T	10T	16T	25T	40T	63T	100T	160T	200T	250T	315T
Nominal Force		KN	40	63	100	160	250	400	630	1000	1600	2000	2500	3150
Max pressure of liquid		Mpa	8	8	8	13	20	22	25	25	25	25	25	25
Max opening height		mm	400	450	500	550	600	700	800	800	800	800	800	900
Max stroke of slider		mm	200	250	300	350	350	400	500	500	500	500	500	500
Down speed of slider		mm/s	42	42	42	42	42	42	42	35	30	35	30	30
Return speed of slider		mm/s	80	80	80	80	80	80	80	60	60	65	60	55
Throat Depth		mm	180	250	250	280	280	300	300	320	320	320	320	400
Table size	L-R	mm	400	480	480	600	600	600	700	800	800	900	900	1000
Table size	F-B	mm	320	440	440	500	500	550	600	600	650	650	650	700
Operation Height		mm	710	710	710	710	710	710	710	710	710	710	710	710
Blanking aperture		mm	50	50	50	50	60	80	80	80	100	100	100	120
Powder of motor		KW	2.2	3	4	5.5	5.5	5.5	7.5	7.5	11	15	18.5	18.5
Overall size	L-R	mm	600	620	620	650	750	790	800	1000	1100	1200	1200	1320
	F-B	mm	800	1080	1100	1180	1230	1300	1340	1450	1550	1650	1700	2000
	Height above the floor	mm	1700	1770	1880	2100	2150	2400	2500	2800	2950	3000	3120	3400
Total weight		Kg	450	700	800	1200	1600	2500	4000	5000	6800	8500	12000	16000
