8Mpa C Frame Hydraulic Press Machine 10T Wheel Bearing Hydraulic Press CE ISO9001

Product Categories
Wuxi Meili Hydraulic Pressure Machine Factory
Contact Now

8Mpa C Frame Hydraulic Press Machine 10T Wheel Bearing Hydraulic Press CE ISO9001

  • 1
  • 2

Brand Name : MEILI

Certification : CE ISO9001

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 80 Sets per Month

Delivery Time : In 60days

Packaging Details : Iron Pallet

Product name : 10T C Frame hydraulic press for wheel bearings

Material : Steel Material

Color : Customizable

Type : C frame

Force : 10T

Advantage : Easy Operation Machine

Warranty : 2 years

After sales Service : installation commissioning and training Online support

Contact Now

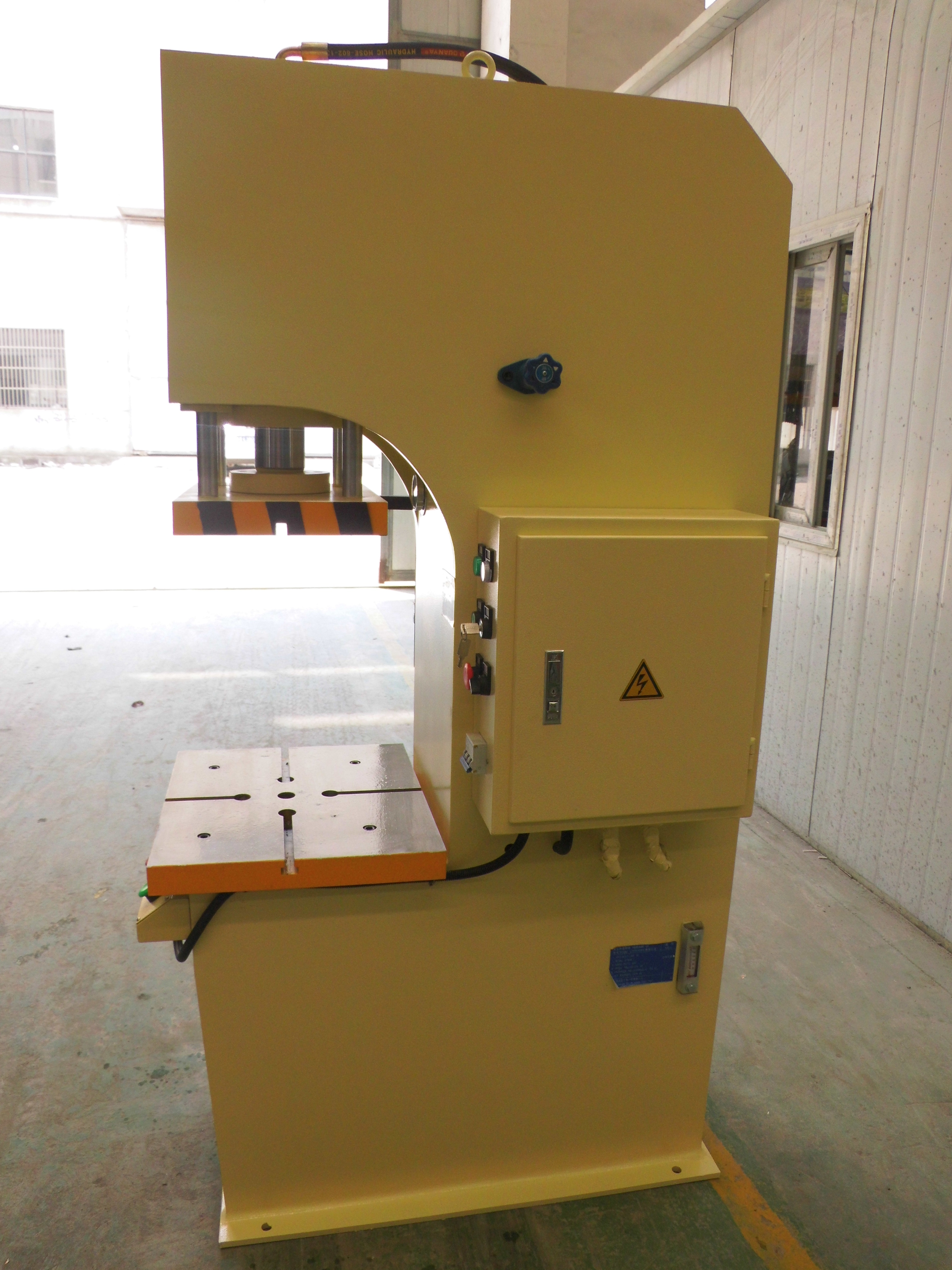

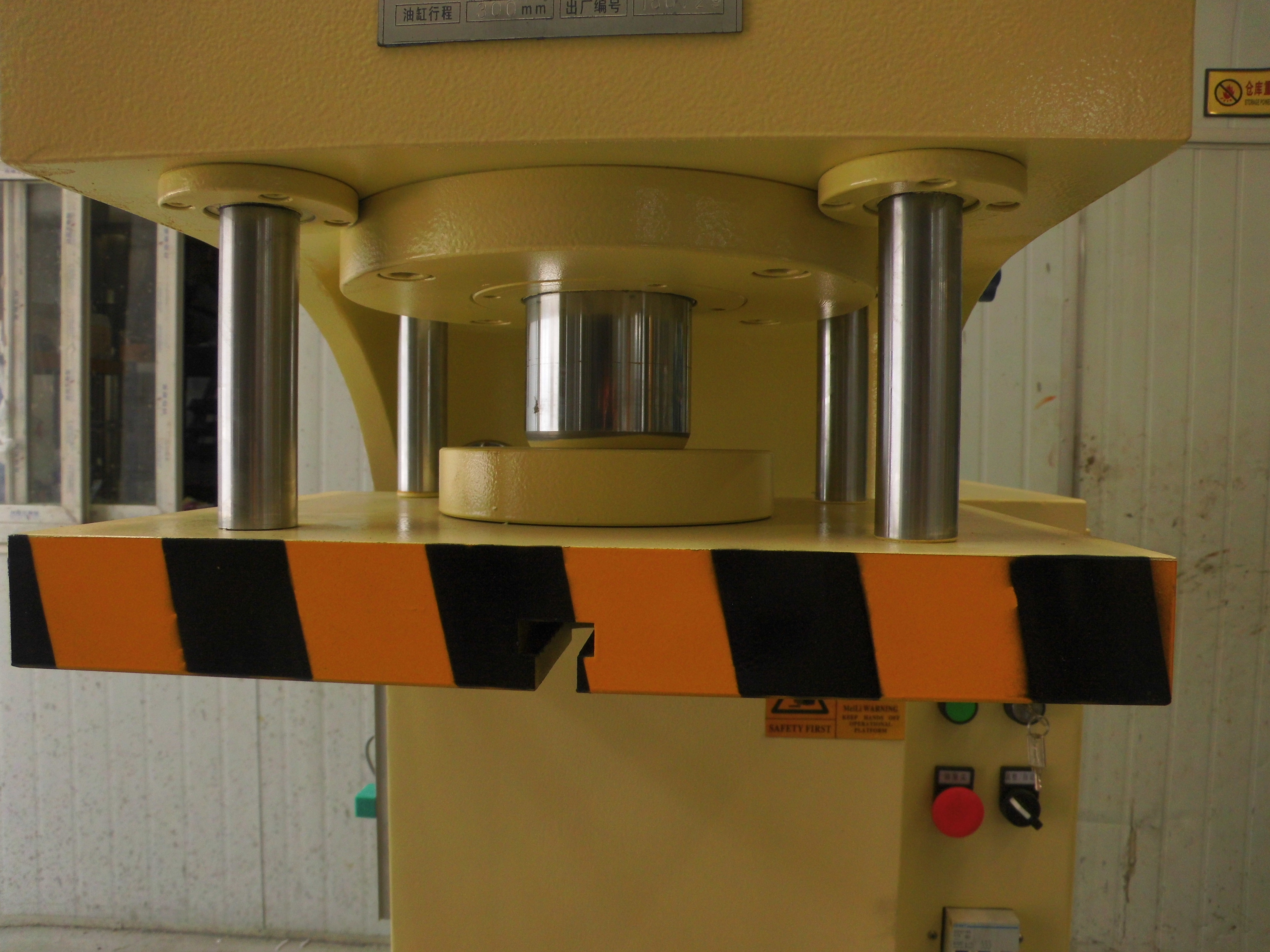

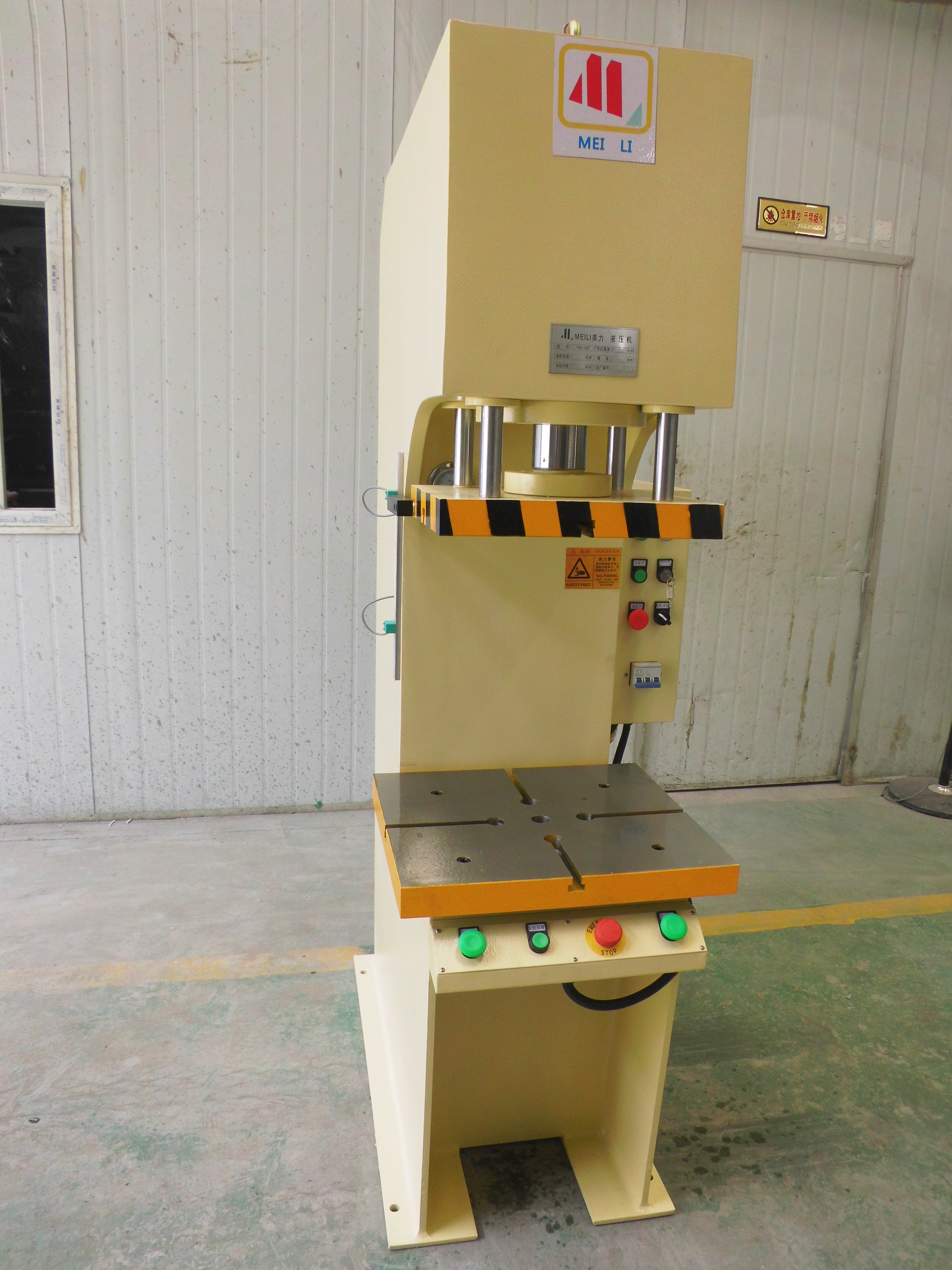

10T C Frame hydraulic press for wheel bearings​.

Application
C-Frame presses are very versatile and can be used in the production of a wide range of components, such as metal screws, tins, motor core components, electronic parts and more. Contact us for more information about optional accessories and you can see how versatile these hydraulic presses can be.

Description Unit 4T 6.3T 10T 16T 25T 40T 63T 100T 160T 200T 250T 315T
Nominal Force KN 40 63 100 160 250 400 630 1000 1600 2000 2500 3150
Max pressure of liquid Mpa 8 8 8 13 20 22 25 25 25 25 25 25
Max opening height mm 400 450 500 550 600 700 800 800 800 800 800 900
Max stroke of slider mm 200 250 300 350 350 400 500 500 500 500 500 500
Down speed of slider mm/s 42 42 42 42 42 42 42 35 30 35 30 30
Return speed of slider mm/s 80 80 80 80 80 80 80 60 60 65 60 55
Throat Depth mm 180 250 250 280 280 300 300 320 320 320 320 400
Table size L-R mm 400 480 480 600 600 600 700 800 800 900 900 1000
F-B mm 320 440 440 500 500 550 600 600 650 650 650 700
Operation Height mm 710 710 710 710 710 710 710 710 710 710 710 710
Blanking aperture mm 50 50 50 50 60 80 80 80 100 100 100 120
Powder of motor KW 2.2 3 4 5.5 5.5 5.5 7.5 7.5 11 15 18.5 18.5
Overall size L-R mm 600 620 620 650 750 790 800 1000 1100 1200 1200 1320
F-B mm 800 1080 1100 1180 1230 1300 1340 1450 1550 1650 1700 2000
Height above the floor mm 1700 1770 1880 2100 2150 2400 2500 2800 2950 3000 3120 3400
Total weight Kg 450 700 800 1200 1600 2500 4000 5000 6800 8500 12000 16000

C-FRAME HYDRAULIC PRESSES
C-frame hydraulic presses are commonly referred to as 'C' type presses because of the characteristic shape of the machine body resembling the 'C' letter. The advantage of the C-frame presses is a possibility to access the workspace from three sides what makes the process of tooling exchange easier and enable processing of the wide elements.

8Mpa C Frame Hydraulic Press Machine 10T Wheel Bearing Hydraulic Press CE ISO9001

8Mpa C Frame Hydraulic Press Machine 10T Wheel Bearing Hydraulic Press CE ISO90018Mpa C Frame Hydraulic Press Machine 10T Wheel Bearing Hydraulic Press CE ISO9001


Product Tags:

C Frame Hydraulic Press Machine 10T



8Mpa wheel bearing hydraulic press



wheel bearing hydraulic press CE ISO9001


China 8Mpa C Frame Hydraulic Press Machine 10T Wheel Bearing Hydraulic Press CE ISO9001 wholesale

8Mpa C Frame Hydraulic Press Machine 10T Wheel Bearing Hydraulic Press CE ISO9001 Images
